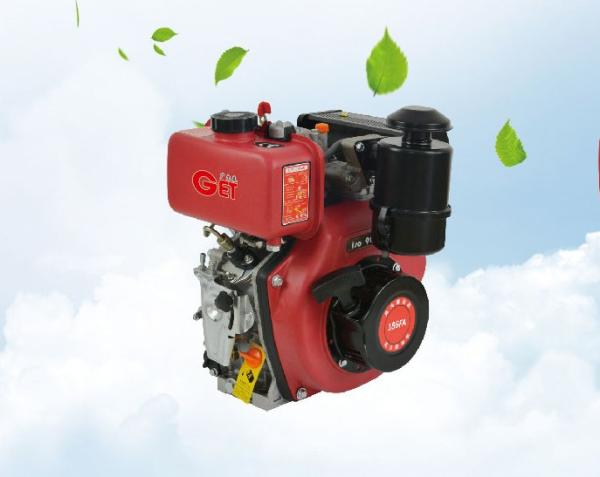

Red Single Cylinder Diesel Engine Vertical Diesel 4 Stroke Engine

Brand Name : GET

Type : single cylinder, vertical, four-stroke, direct injection, air-cooled

borexstroke : 73x59mm, 78x62mm, 86x72mm

displacement : 247ml, 296ml, 418ml

compression ratio : 20:01, 20:01, 19:01

rated power(kw/rpm) : 3.5/3000-3.8/3600，3.68/3000-4/3600，5.7/3000-6.3/3600

rated power(hp/rpm) : 4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600

rated speed(rpm) : 3000/3600

lowest rotation speed at zero load : ≤1300r/min

lubricating system : pressure splashed

starting system : recoil start/electric starter

rotation direction(face to the output axle ) : anticlockwise

fuel type : 0#(summer)-10#(winter)-35#(chillness) diesel

fuel tank capacity : 2.5L 3.5L 5.5L

fuel consumption/related rotation speed (g/kw.h/r/min) : 280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600

lube oil type : CD grade or SAE 10W-30, 15W-40

lube oil capacity : 0.75L 1.1L 1.65L

starting motor capacity : 12V 0.8KW

charging generator capacity : 12V 8.3A

battery capacity : 12V 22Ah/ 12V 22Ah/ 12V 30Ah

overall dimension(LxWxH) : 420x400x455mm, 480x460x510mm, 500x460x545mm

dry weight : 28kg, 32kg, 48kg

Place of Origin : China

Certification : ISO CE

Price : Negotiable

Delivery Time : 15-20 workdays

Payment Terms : LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Contact Now

4 Stroke Single Cylinder Diesel Engine One Cylinder Diesel Engine

The single-cylinder air-cooled diesel engine is a diesel engine that adopts air-cooled heat dissipation method and has the following characteristics:

Simple structure: Single-cylinder air-cooled diesel engines usually have a simple structure and consist of fewer parts. This makes them relatively lightweight and easy to maintain.

High reliability: Due to its simplified structure, the single-cylinder air-cooled diesel engine has high reliability. They do not rely on complex cooling systems, reducing points of failure and helping to improve stability and reliability.

High adaptability: The single-cylinder air-cooled diesel engine has strong adaptability and can work in various environmental conditions. Since it does not require an additional water cooling system, it can be used in areas with high temperatures, high humidity or limited water resources.

Model GET173F GET186FA GET178F
Bore x Stroke mm 296 x 418 - -
Displacement mL 247 - -
Compression Ratio 13.5/3000 3.68/3000 5.7/3000
Rated Power KW/rpm 4/3600 6.3/3600 3.8/3600
Rated Power HP/rpm 5.2/3600 5.4/3600 8.6/3600
Rated Speed/≤r/min - - ≤1300
Lubricating system Pressure splashed - -
Starting system Recoil Start/electric starter - -
Rotation direction(face to the output axle) Anticlockwise - -
Fuel type 2.5L,3.5L,5.5L diesel - -
Fuel consumption/related rotation speed(g/kW.h///min) 288.3/3600,285.6/3600,281.5/3600 - -
Lube oil type CD grade or SAE 10W-30,15W-40,0.75,1.65L1.1 - -
Lube oil capacity 12V,0.8kWV,kW - -
Starting motor capacity V,A12V8.3ACharging generator capacity - -
